z10 Engine

-

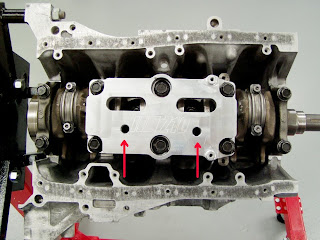

Be Before installing the girdle assembly, we machine a couple .625" holes in it, accompanied by a lot of "sculpting" on the crankshaft side to help route oil into the sump more efficiently. We torque the main caps to the factory specs for a GSR/I using new bolts.
