Correct Hone Finish

-

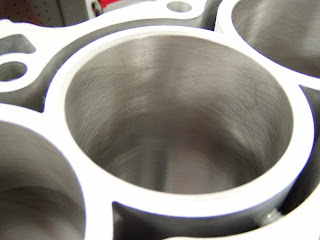

This close-up of the a cylinder shows the correct hone finish. This finish is very smooth to the feel as you run a finger down the bore, but it's coarse when you pull your finger back up. You can see just how small the chamfer is in this picture. Also visible is the upper cylinder "post" in the water jacket at the lower right side.
